Description

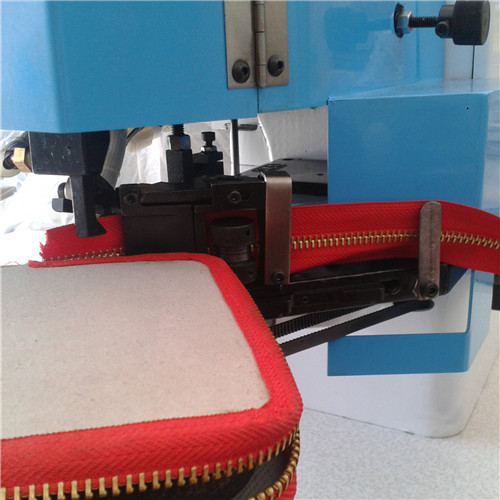

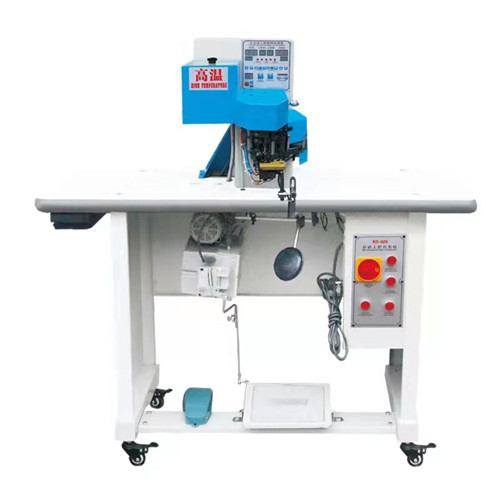

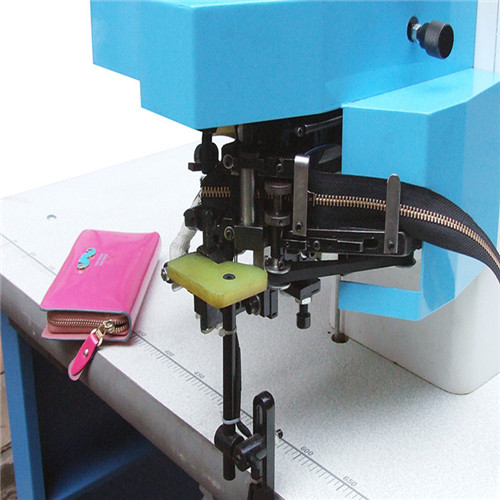

BDM-296B AUTOMATIC CEMENTING AND COVERING ZIPPER MACHINE
USE：The machine adapts to gluing and covering zippers of bags automatically.1.Adopt the touch pattern control panel, numerical indication of melt glue temperature, outflow glue quantity and outflow glue temperature and the infinitely variable adjustment of outflow glue.
2.The machine adopts the gluing system of dual pumps , which makes adjusted of outflow from upper glue head and lower gluing head can be adjust separately.
3.Set zipper length according to bag mould peripheral length, feed zipper
automatically, cut off.
4.With the automatic electronic locating of servo motor, it can save 40% energy and electricity.
DM-296A Automatic Leather Shoes Insole Edge Sideline Covering Machine
1.Adopt the touch pattern control panel, numerical indication of melt gluetemperature, outflow glue quantity and outflow glue temperature and the infinitely variable adjustment of outflow glue.
2.The machine adopts the gluing system of dual pumps , which makes adjusted of outflow from upper glue head and lower gluing head can be adjust separately.
3.Can set up the covering length according to the length of insole sideline, and the needed covering length can be fed and cut automatically.
4.With the automatic electronic locating of servo motor, it can save 40% energy and electricity.
This machine adapts to gluing & covering the insole sideline of leather shoes automatically.
|
|
Zipper cementing covering machine | Insole edge gluing covering machine |
| Model: | DM-296B | DM-296A |
| Total power: | 1.2kW | 0.75KW |
| Capacity | 2000 pairs/8hours | 2000 pairs/8hours |
| Power: | 220V/50-60Hz 1-phase | 220V/50-60Hz 1-phase |
| Package size: | 1280×730×1350mm | 1280×730×1350mm |
| N.W. | 135kgs | 135kgs |
| G.W. | 175kgs | 175kgs |
