Description

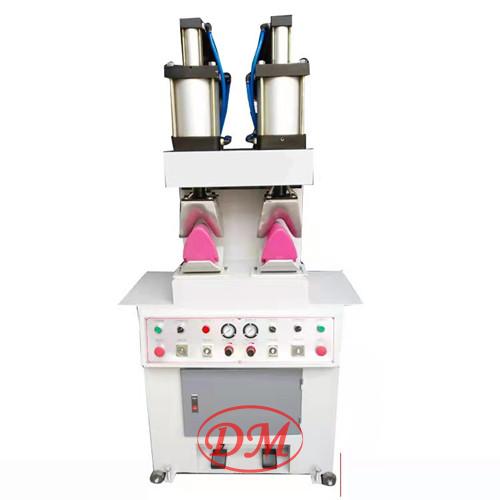

DM-806 Automatic Upper Crimping Machine for shoe
This machine is suitable for upper crimping to match with shoe last and facilitating the work in toe lasting machine.
It has been designed with a side clip device to clamp the upper and avoid displacement.
The temperature of the upper aluminum die is adjustable for softening the leather.
After crimping, the lining is tightly bonded without any wrinkles or damages.
The lower rubber mold is made from heat-resistant silicon, which fills each interval along with the expansion of the rubber mold and achieves more accurate upper forming.
|
Model |
DM-806 |
|
Voltage |
220V/50HZ |
|
Air resource pressure |
0.5∽0.7MPa |
|
Exhaust discharge capacity |
0.3m3/min |
|
Working efficiency |
1200pairs/8hours |
|
N.W. |
300Kgs |
|
Power |
2kw |
|
Machine size |
950*550*1780mm |
|
Package size |
1000*650*1900mm |
|
|
1.24 CBM |
|
The temperature and time of mould can be controlled separately. |
|
